HMS780
Smart and easy-to-use house monitoring for your RV-C equipped motorcoach

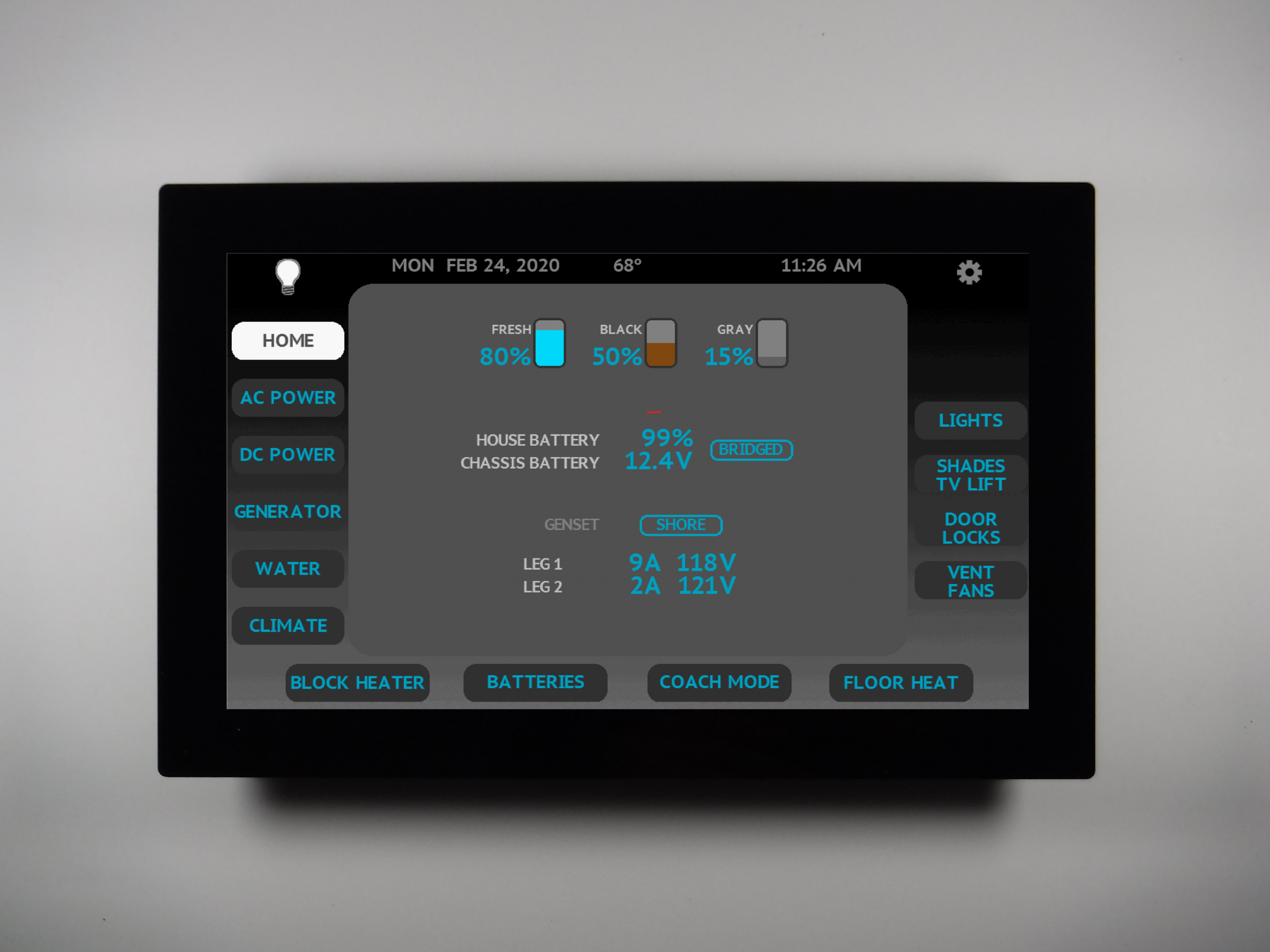

HMS780

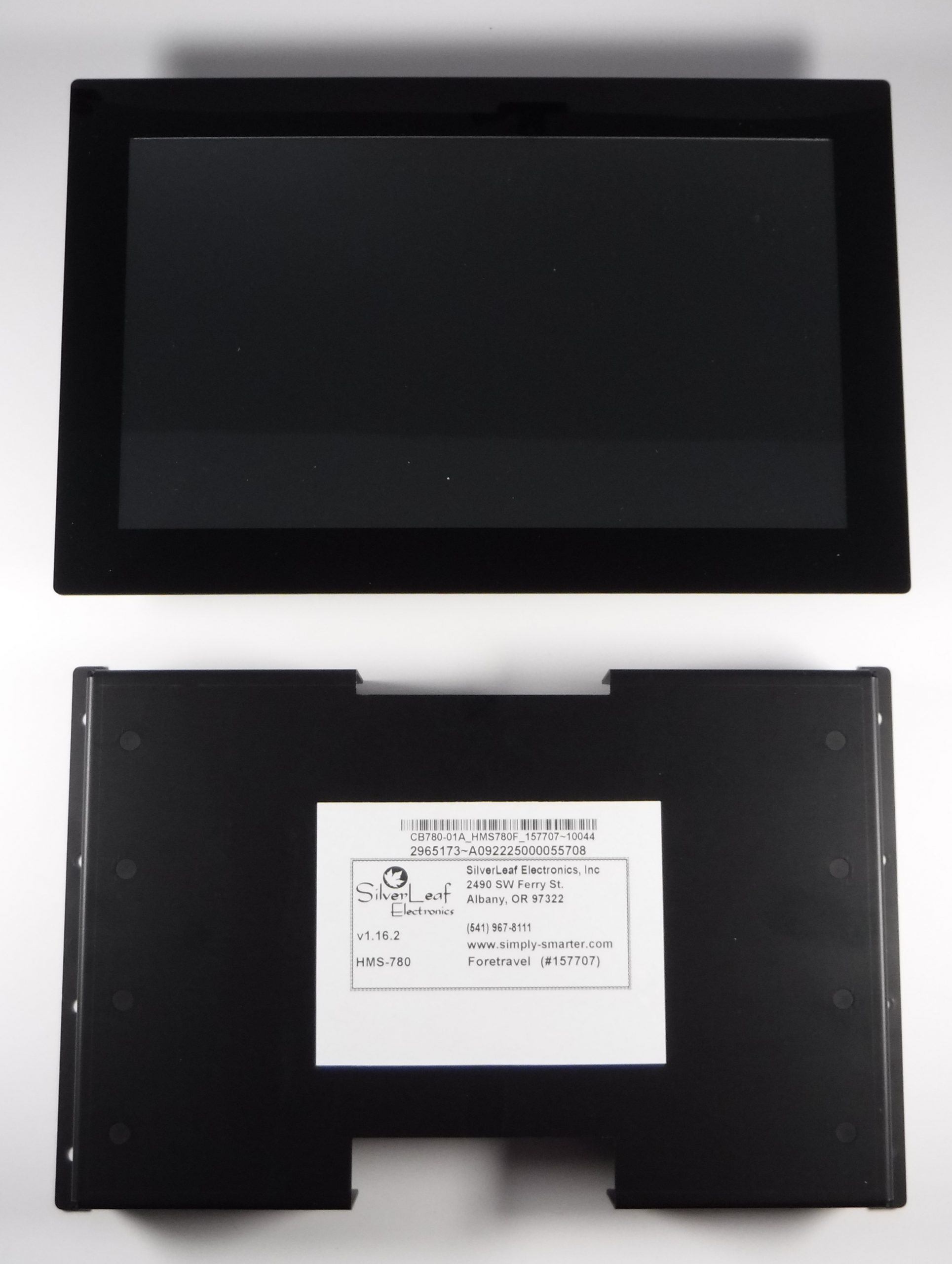

10″ Touch Screen House Monitor
The SilverLeaf HMS780 is the largest house monitor we offer. Tired of small buttons and hard to see fonts? This monitor was made for you! Same slick design and capabilities as the HMS787 but bigger!
- 10″ diagonal display (8.75″W x 5″H)
- 1024 x 600 resolution (WSVGA)
- capacitive touch screen
- all glass front – no exposed screws
Choose Your UI
But choose wisely… The HMS780 supports 3 different UIs. You may pick one when purchasing a unit. Ask Trillium for recommendations as one may work better for some coaches than others.

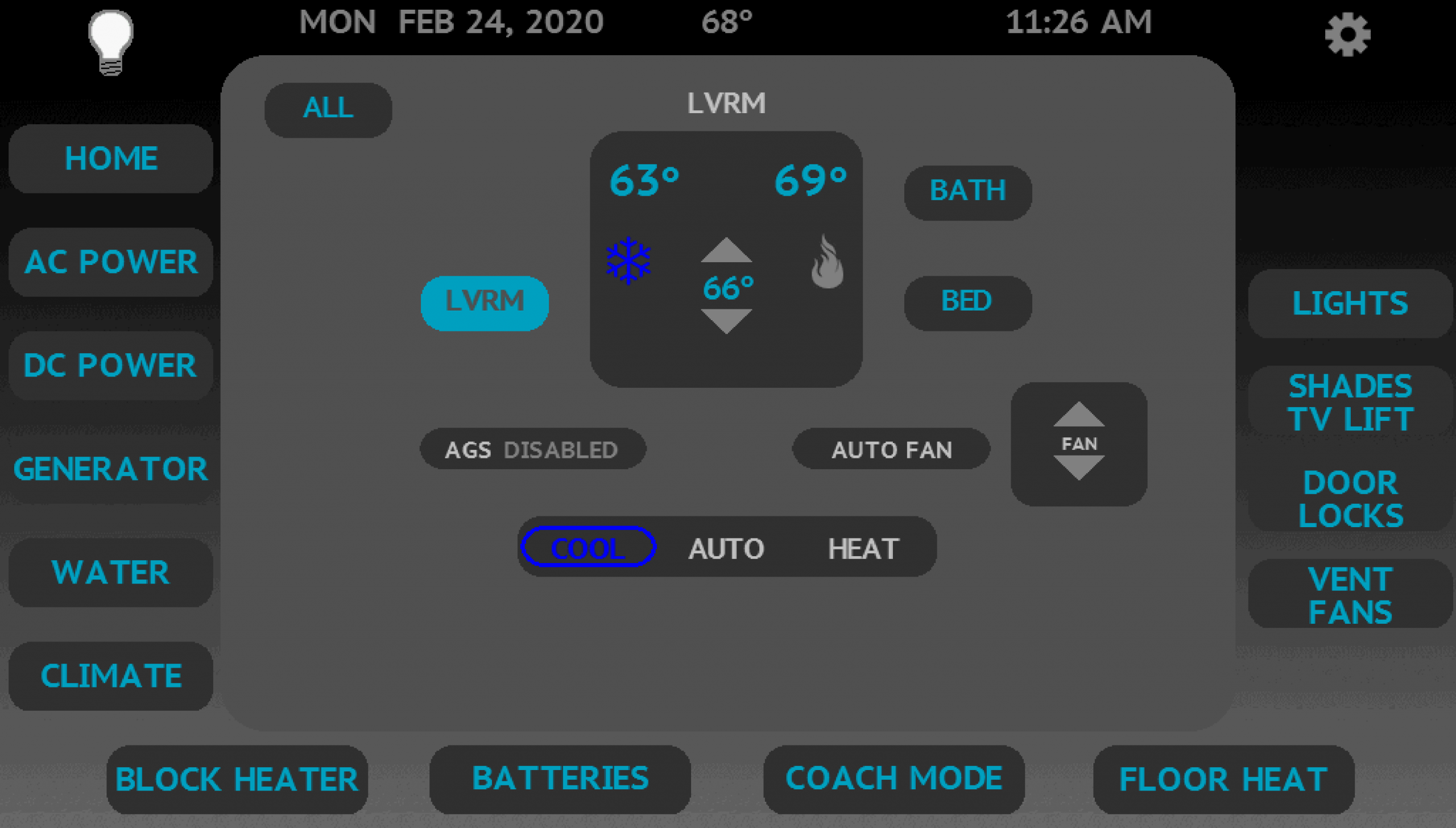

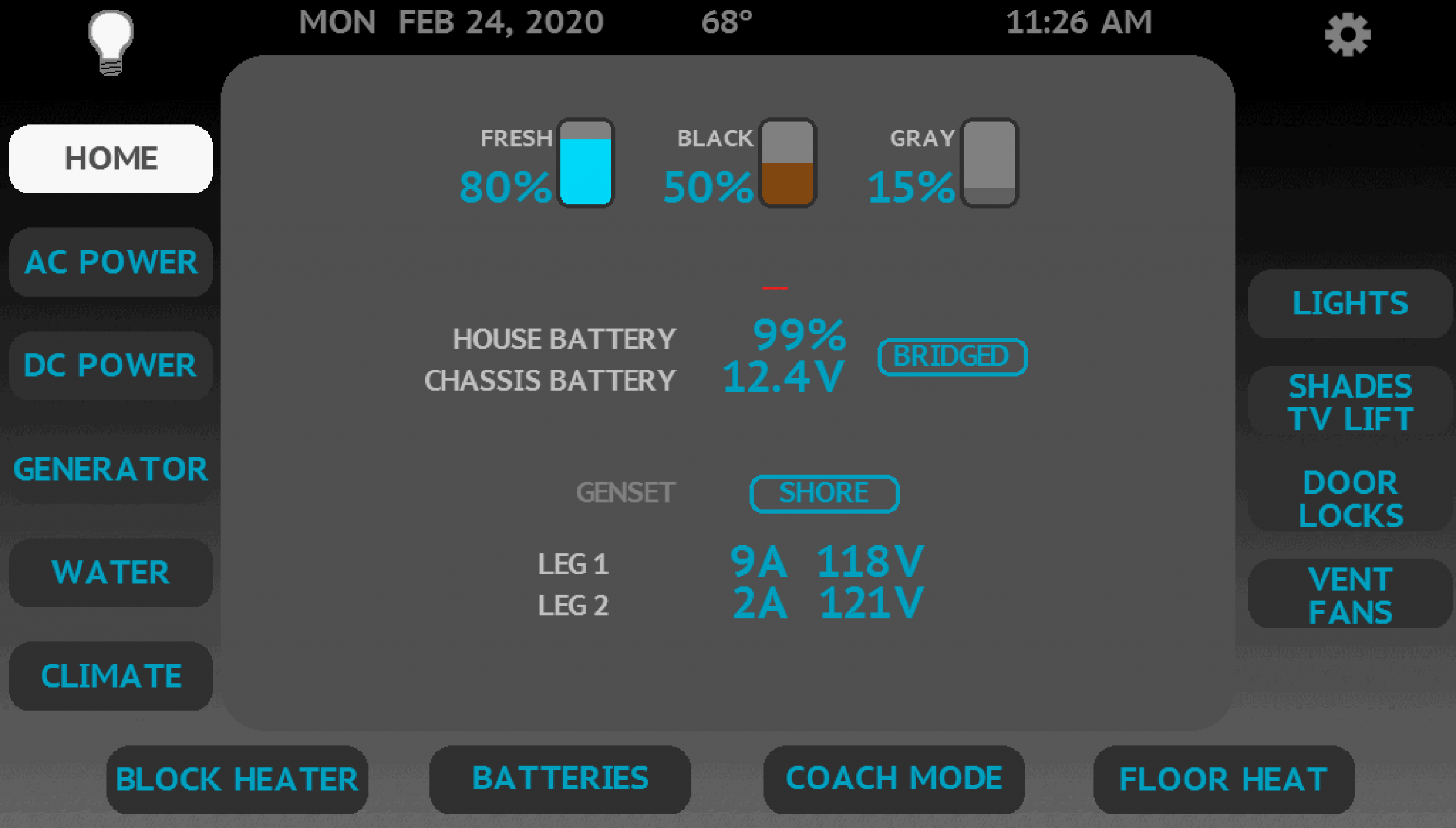

Blocky
Simple, clean look popular with Newmar coach owners.

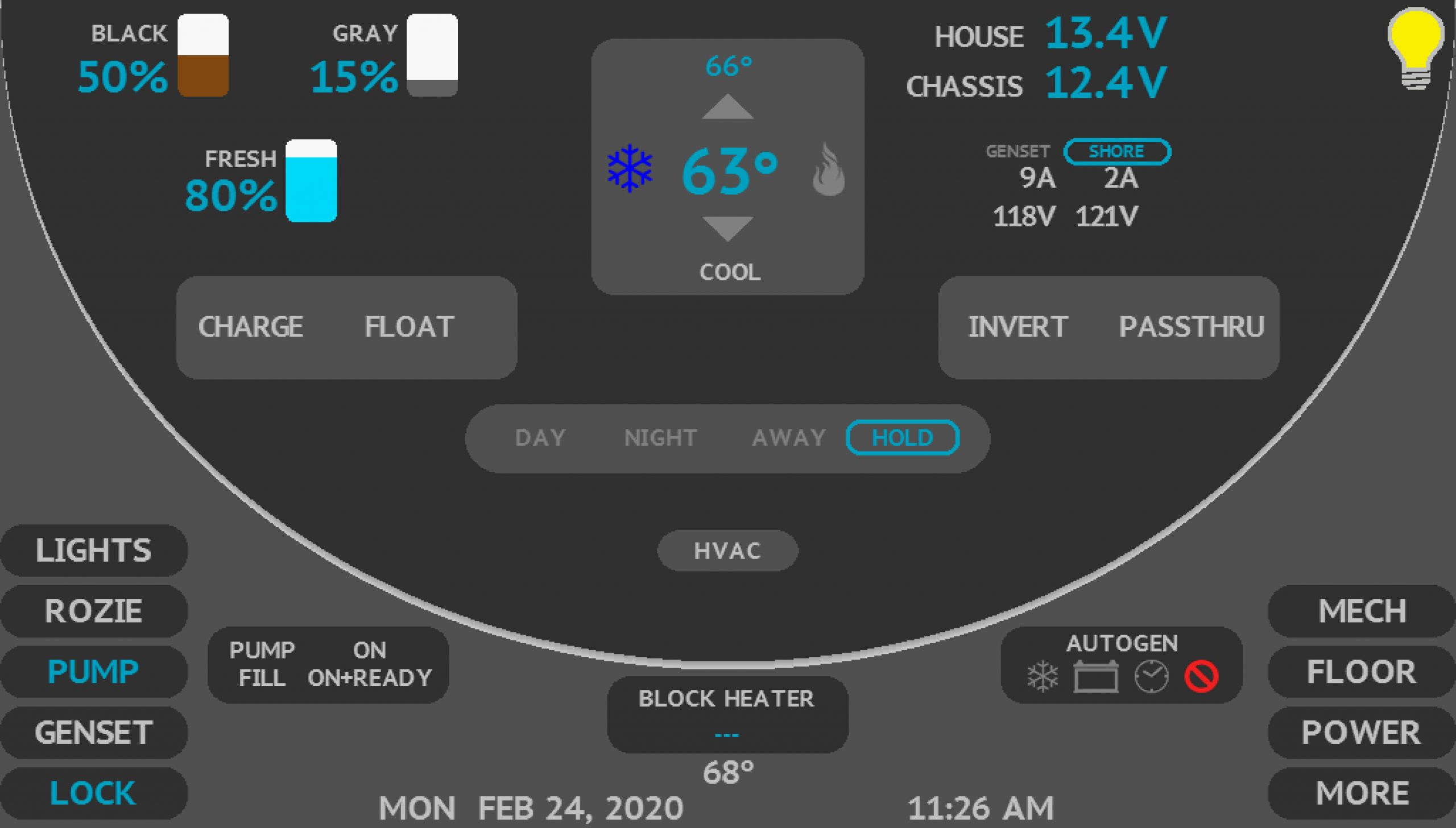

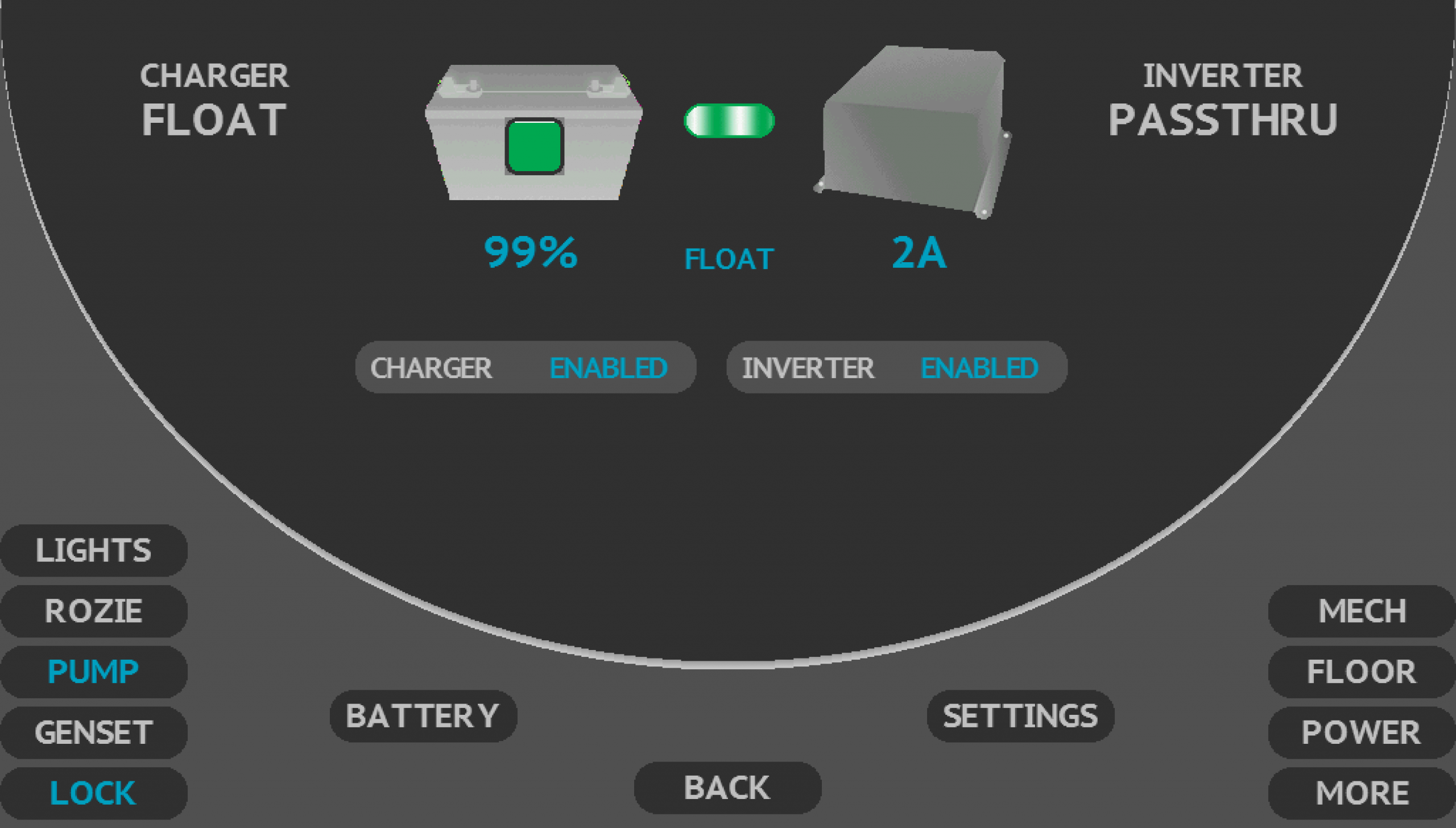

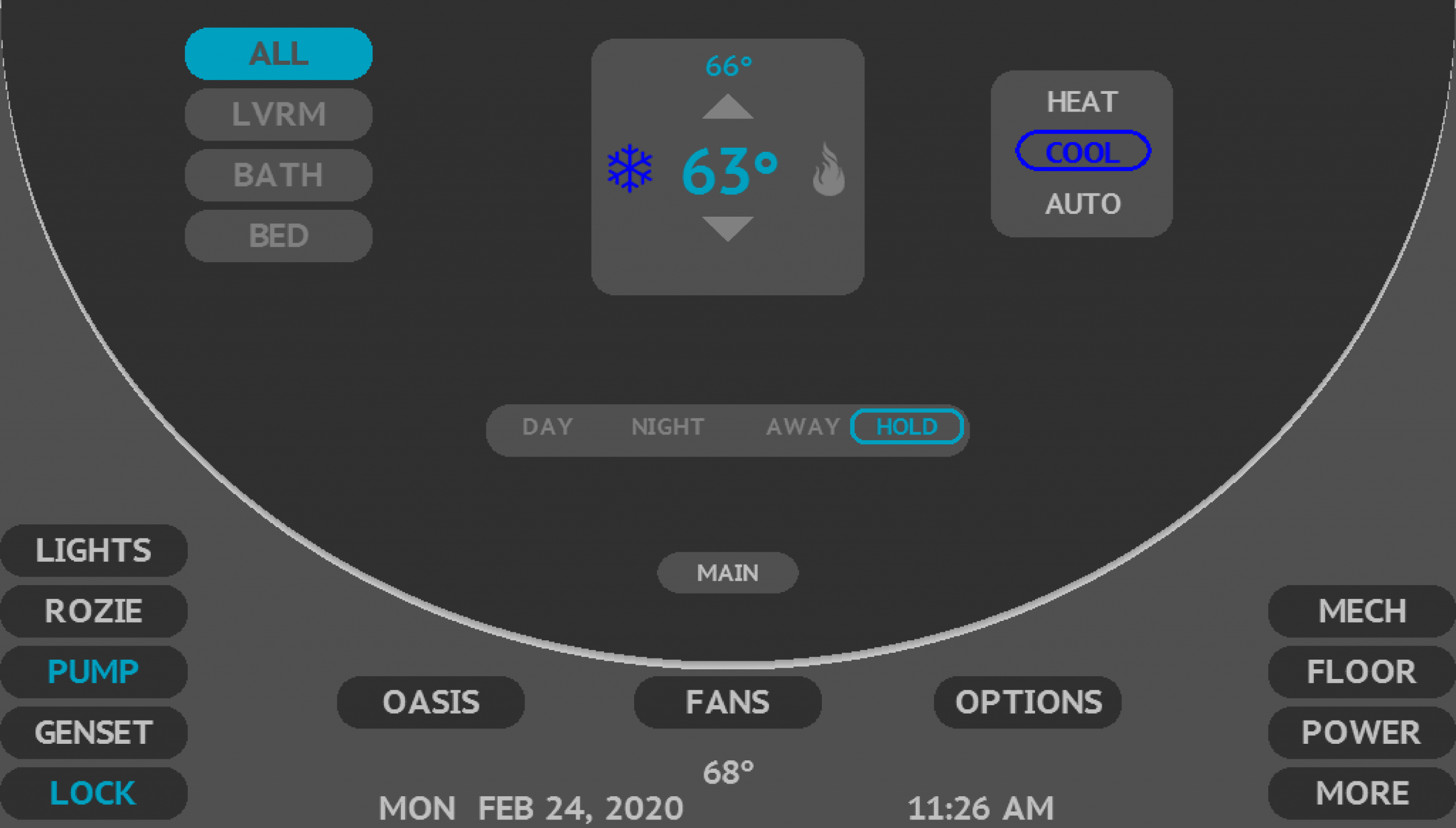

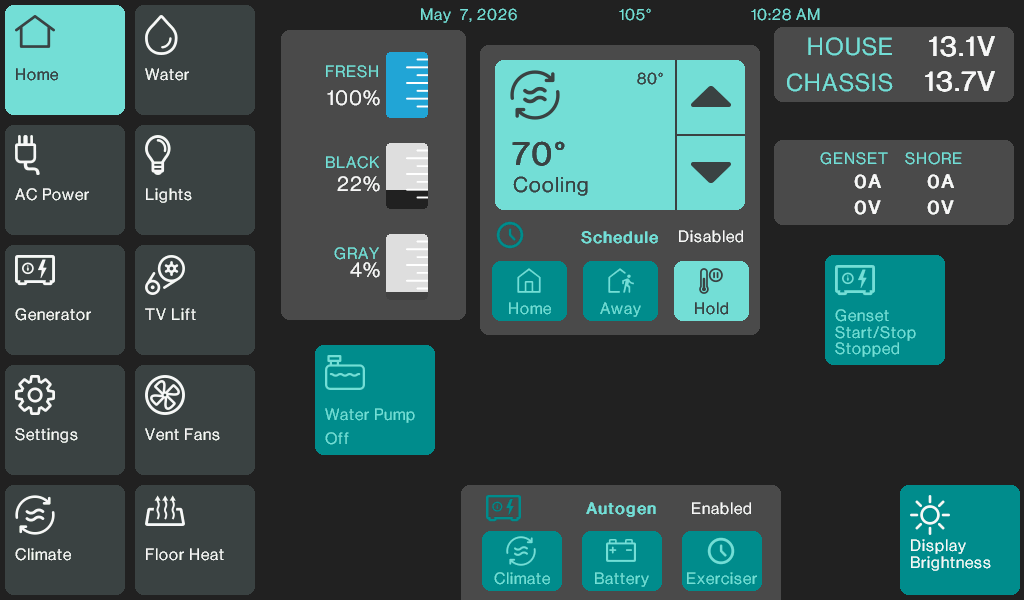

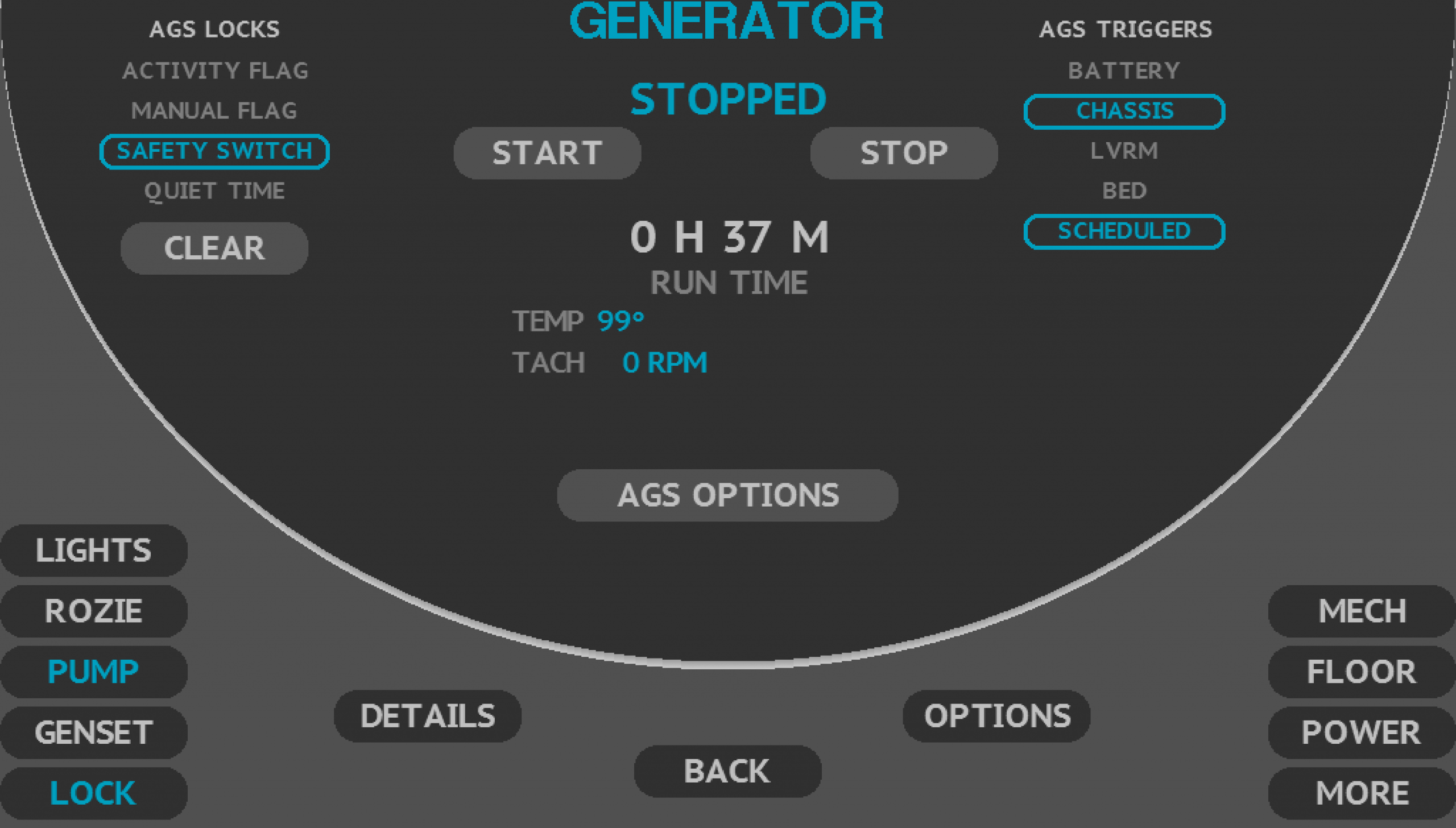

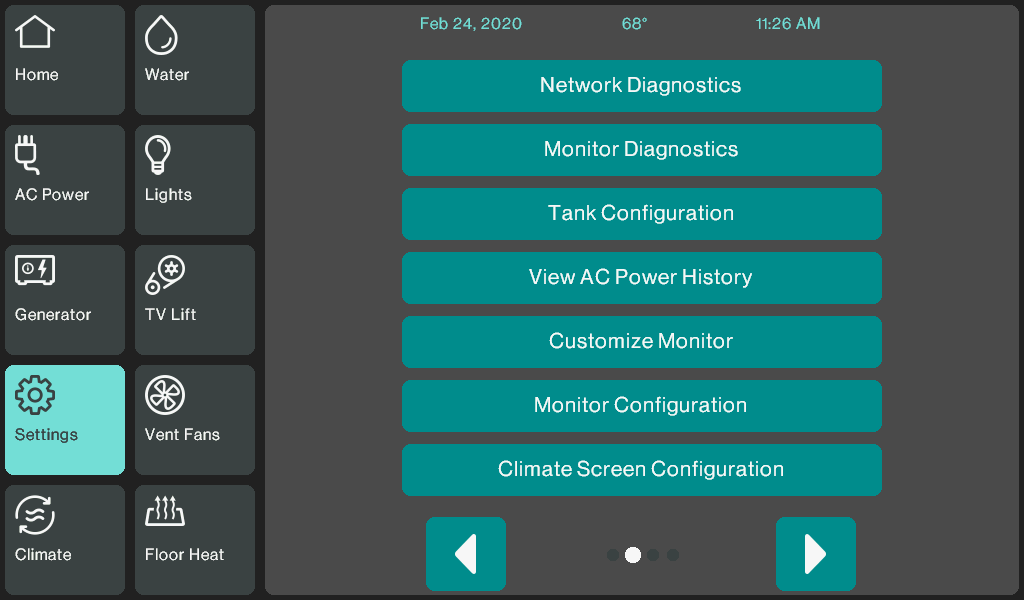

Modern
A more modern sophisticated look, popular with Foretravel coach owners.

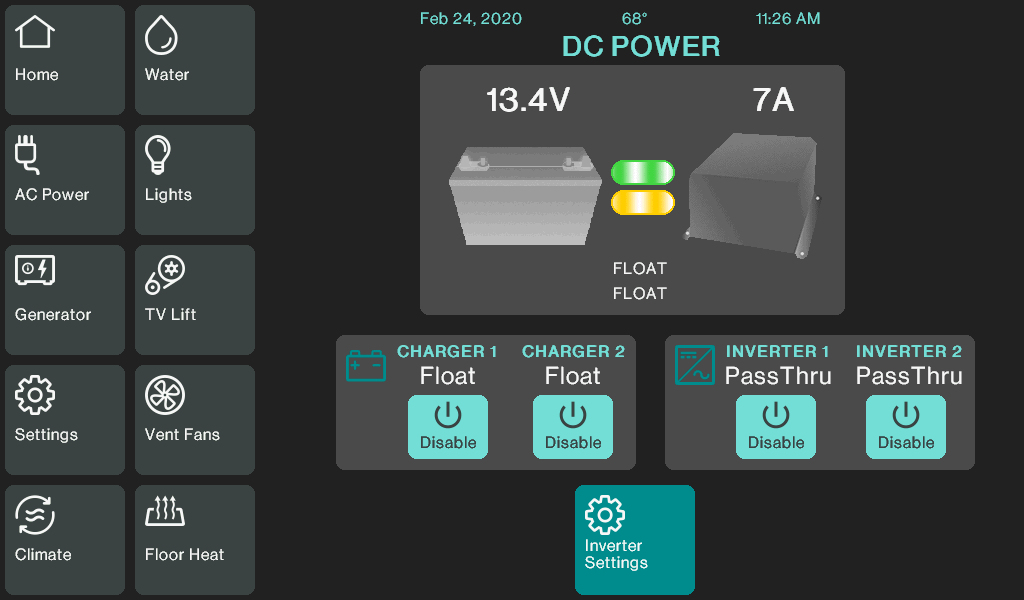

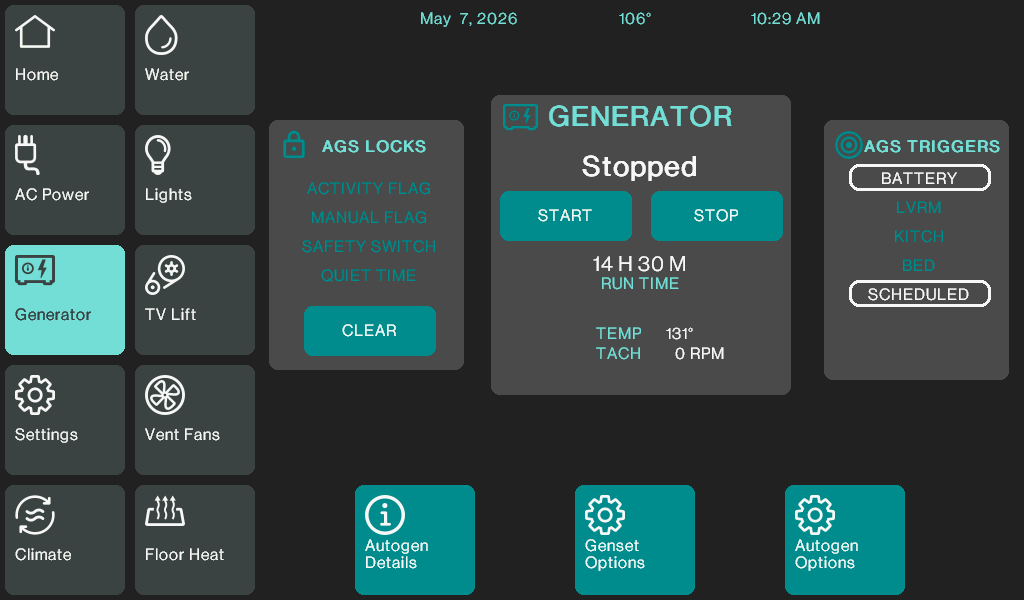

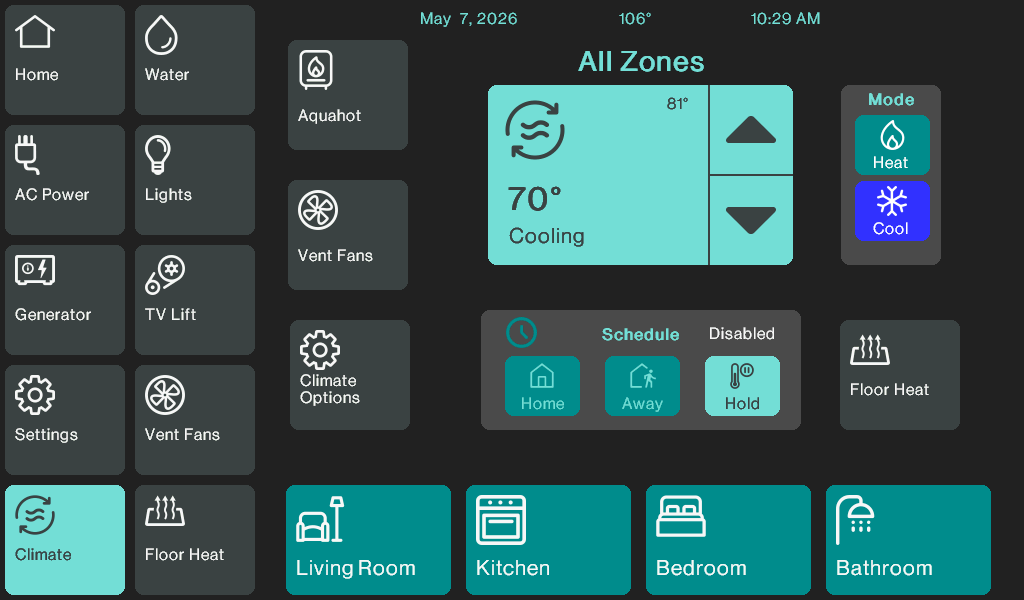

Tiles
Brand new UI developed by the SilverLeaf team.
Standard HMS Features
RV-C Device Support
AC Power
AC Load Management
Awnings
Automatic Genstart
Clock
Climate Control – up to 4 zones
DC Power
Floor Heat – up to 4 zones
Generator
Inverter/Charger
Locks
LP Tank Level
Slides
Waste Dump
Water AutoFill
Water Pump
Water Tank Level
Most major transfer switch, inverter, generator, A/C, and furnace brands supported.
RV-C Diagnostics
AC Power History
DMRV Diagnostic Message Center
Parameter Warning Alarms
RV-C Network Querying and Analytics
Customization
Adjustable Touch Sensitivity
Audible Alarms
Adjustable Beep/Click Volume
Brightness Control
Built-in Alarm Clock and Timer
Configurable Color Palette
Day-Night Auto Dim Scheduling
Thinking about an upgrade?

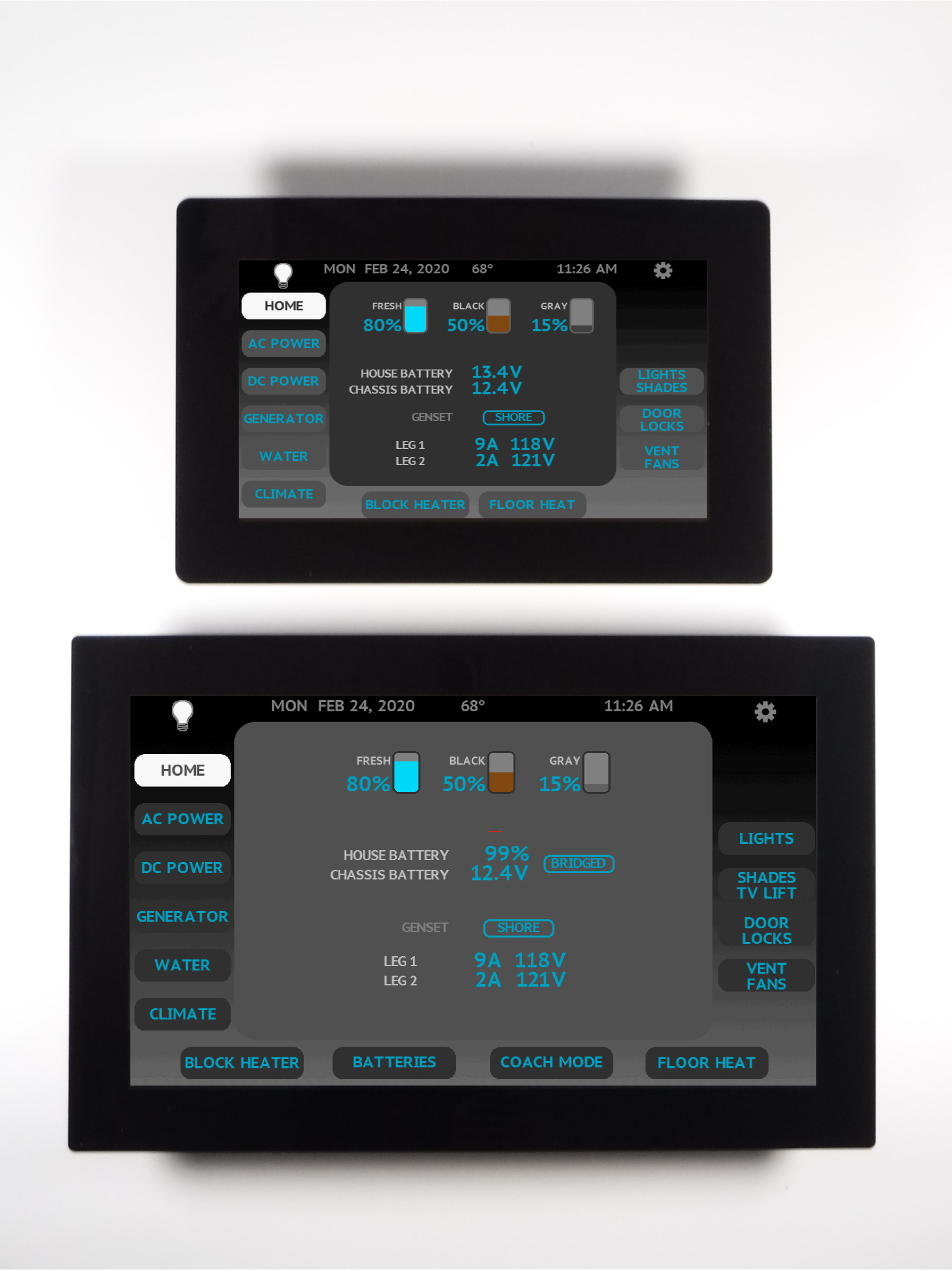

Have a SilverLeaf HMS360 with a failing touch screen? A HMS060 Total Coach Panel that’s losing pixels? Looking to update to a display that is bigger, brighter, and easier to read? See how the HMS780 compares to older SilverLeaf models below. All HMS connectors and pinouts are the same, so wiring is a breeze. Ask how we can help upgrade your house panel today!
Product Documentation
HMS780
Dimensional Drawings
Will it fit? Check the drawing for display dimensions.
