Digital Dash
Enjoy the style and convenience of a modern digital gauge panel for your diesel motorcoach!
- Replaces the entire gauge cluster for the ultimate driving experience!
- Special Anti-Glare optics make it readable in any condition
- Straightforward installation makes this a natural for almost any modern diesel coach

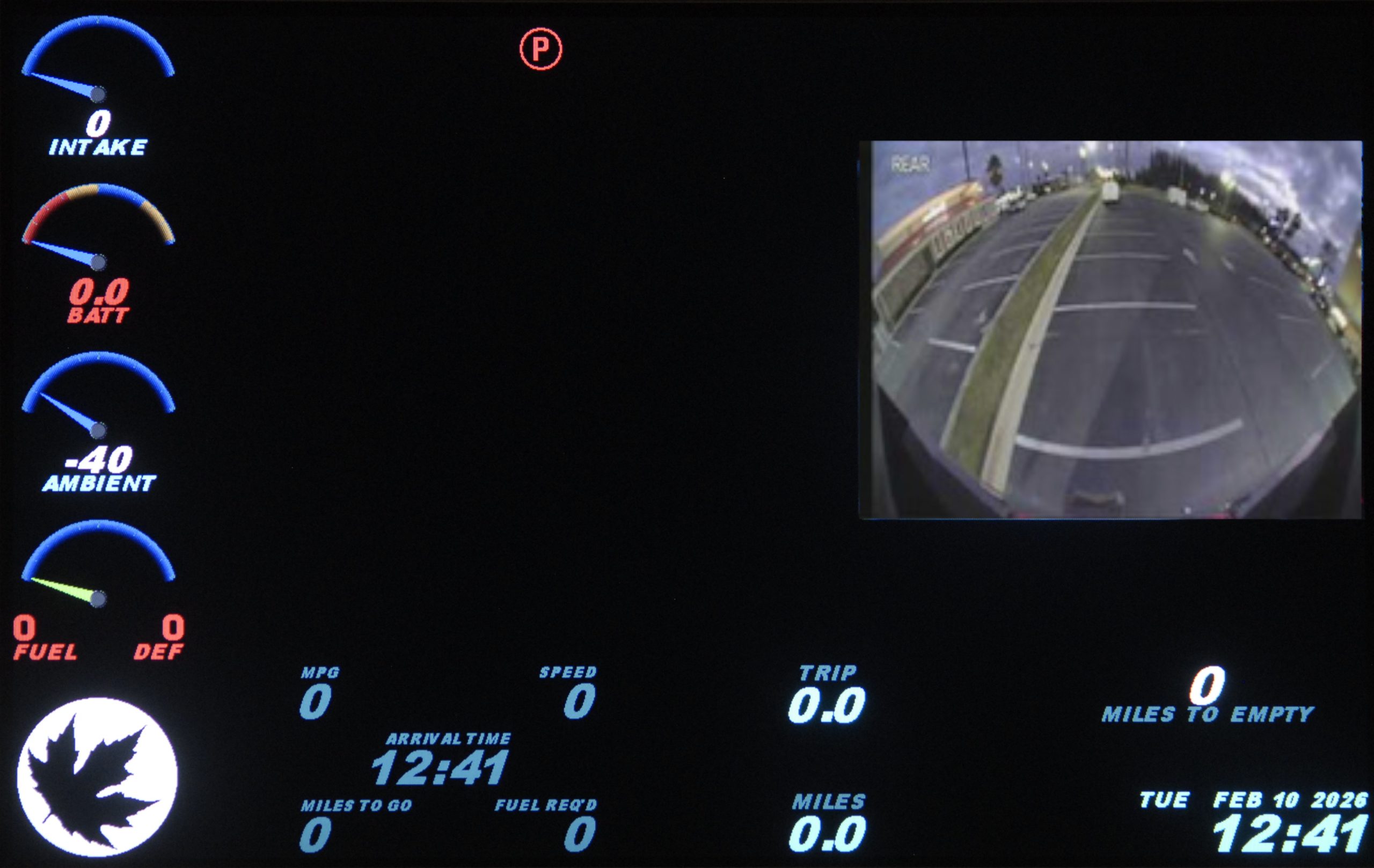

- Use it for a camera monitor as well as a gauge cluster

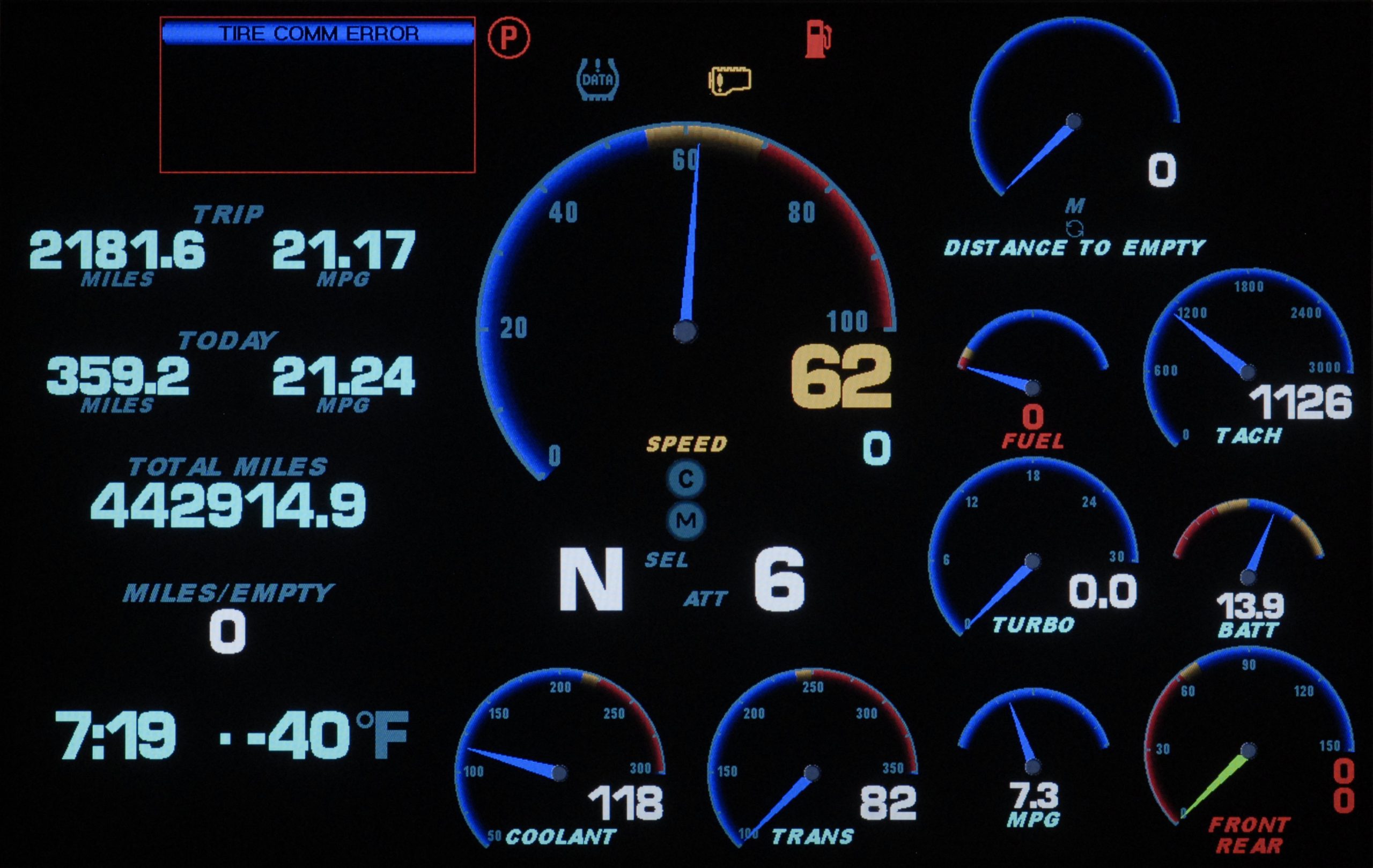

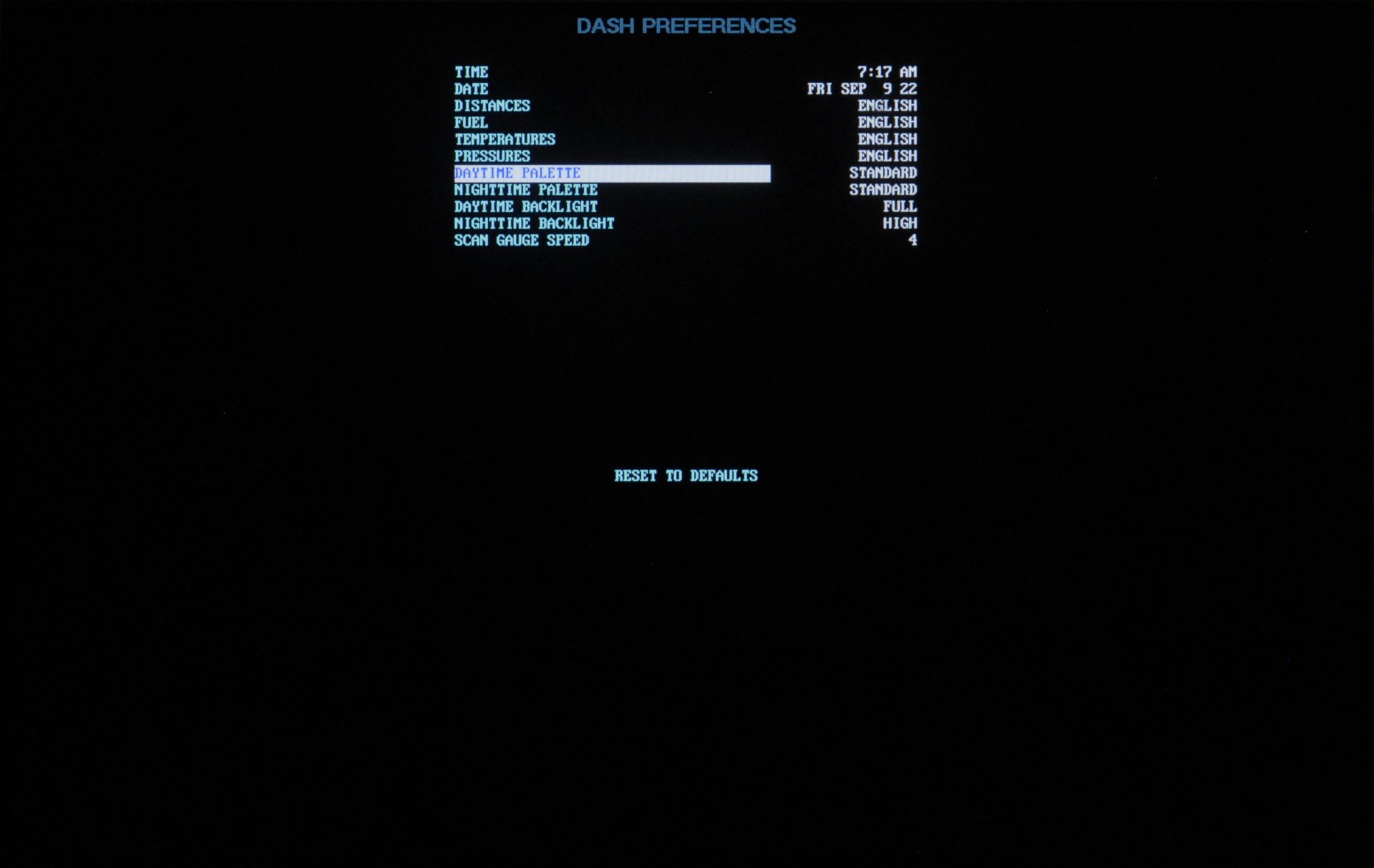

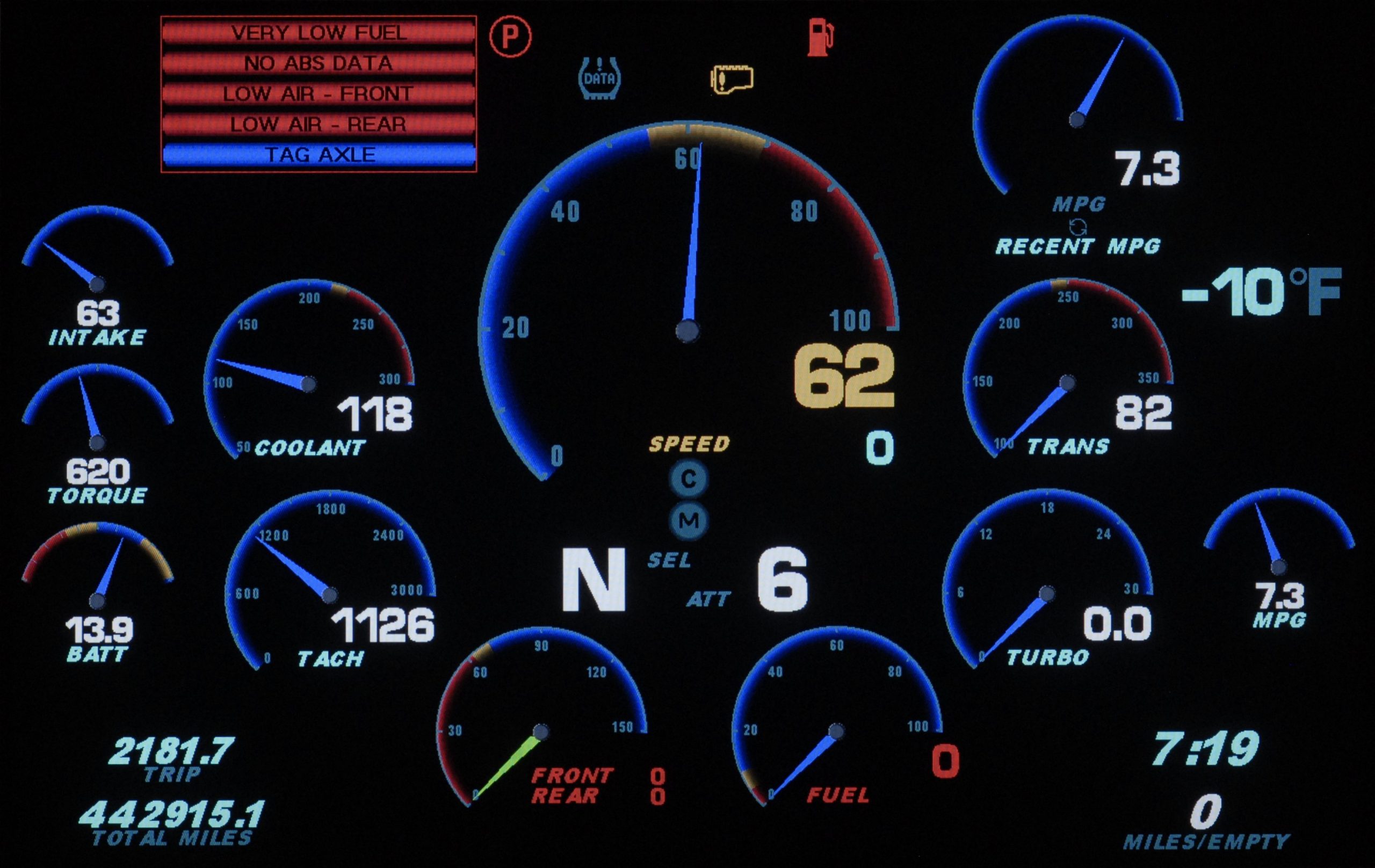

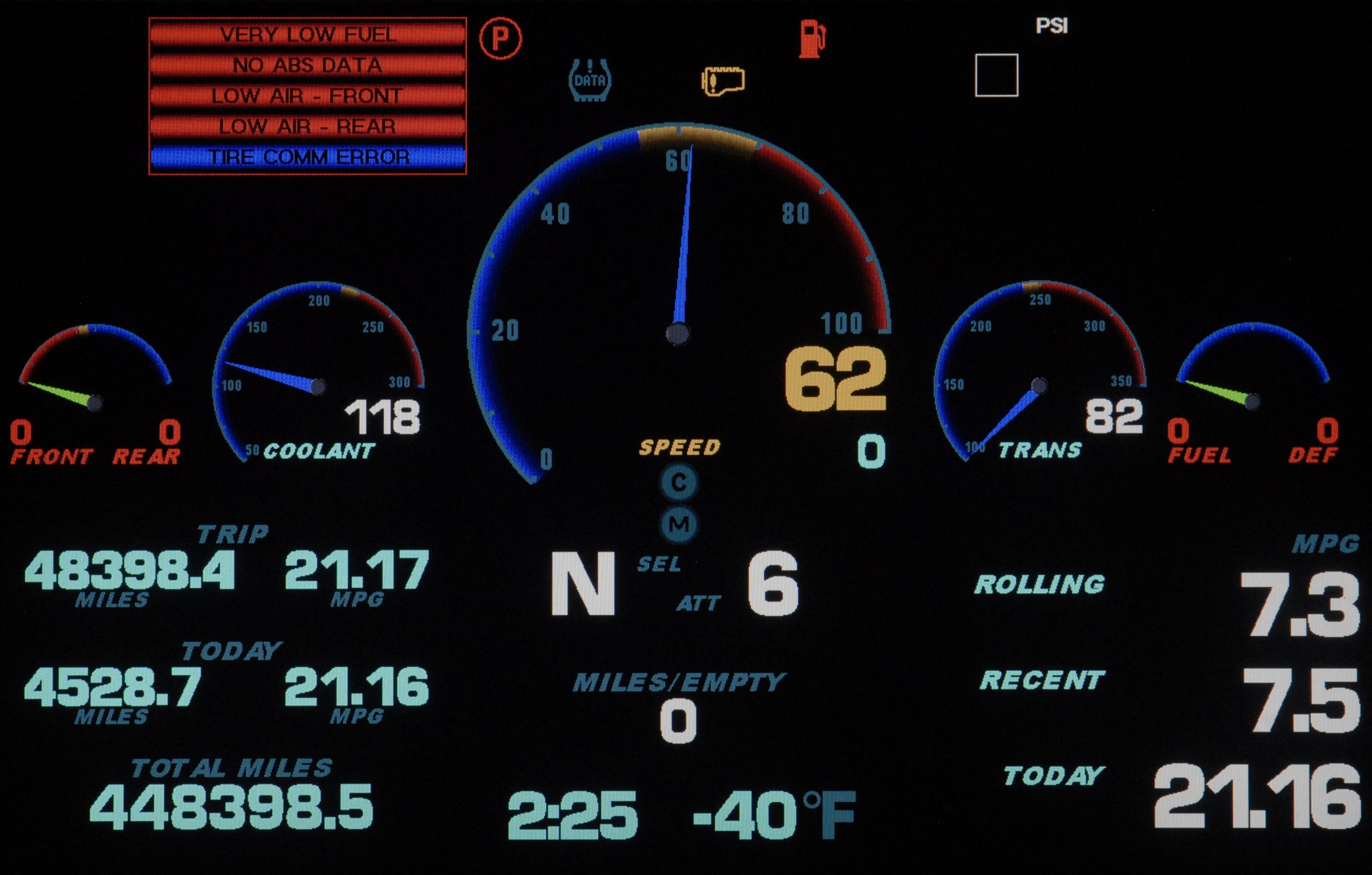

- Driver-configurable. Choose from 3 gauge layouts, multiple screen palettes and more.

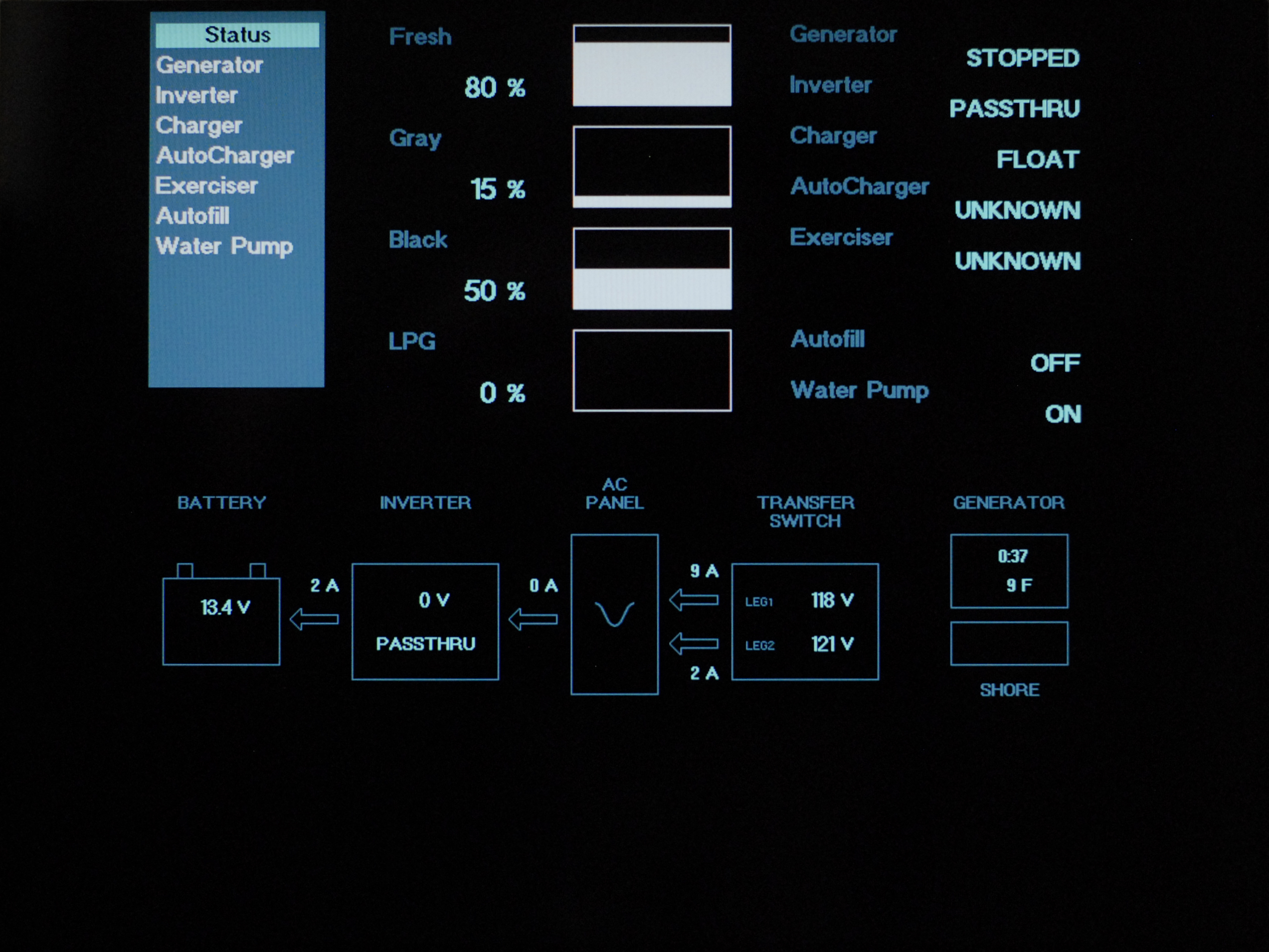

- Built in RV-C Support for house systems monitoring

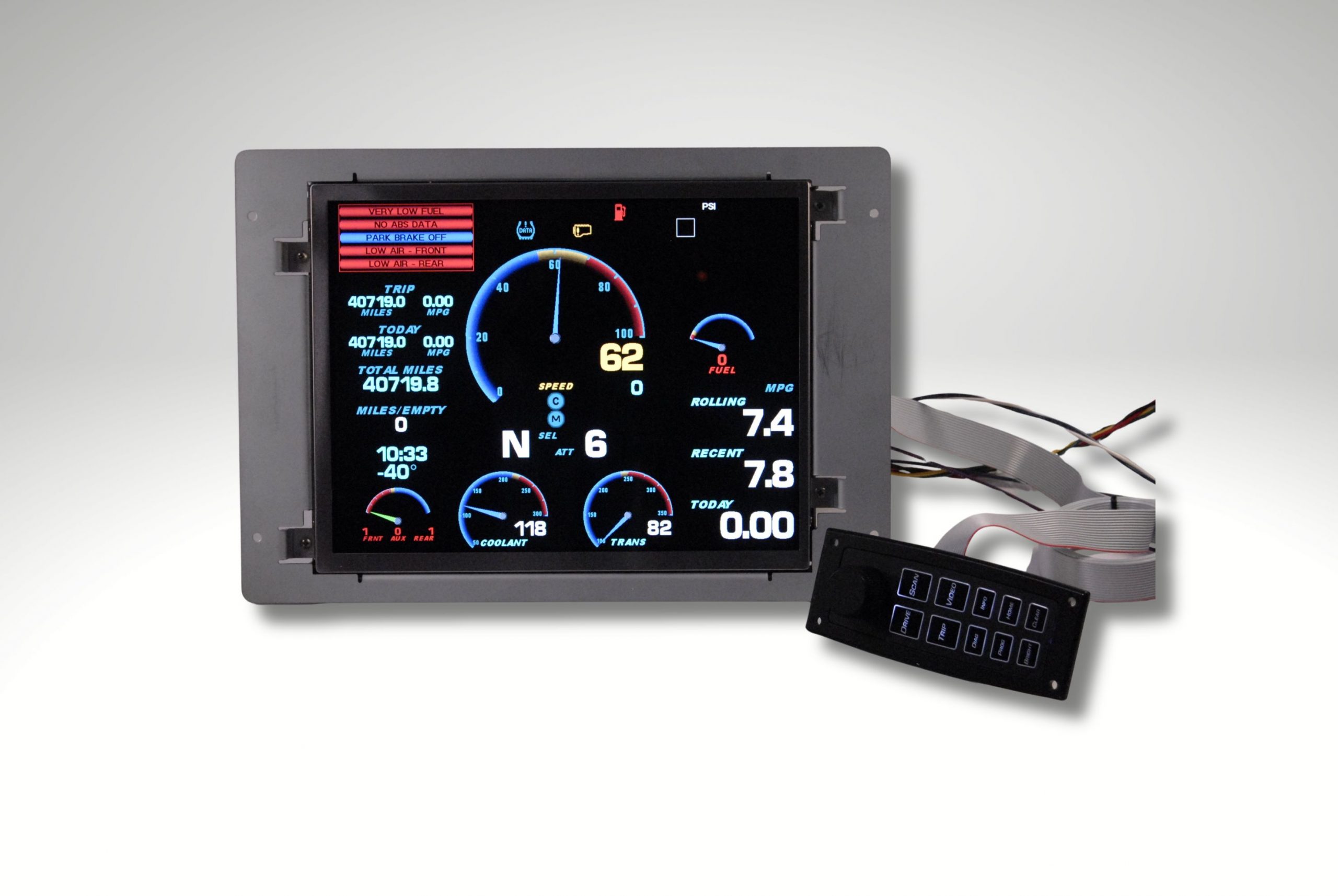

VMS755
10″ Digital Dash

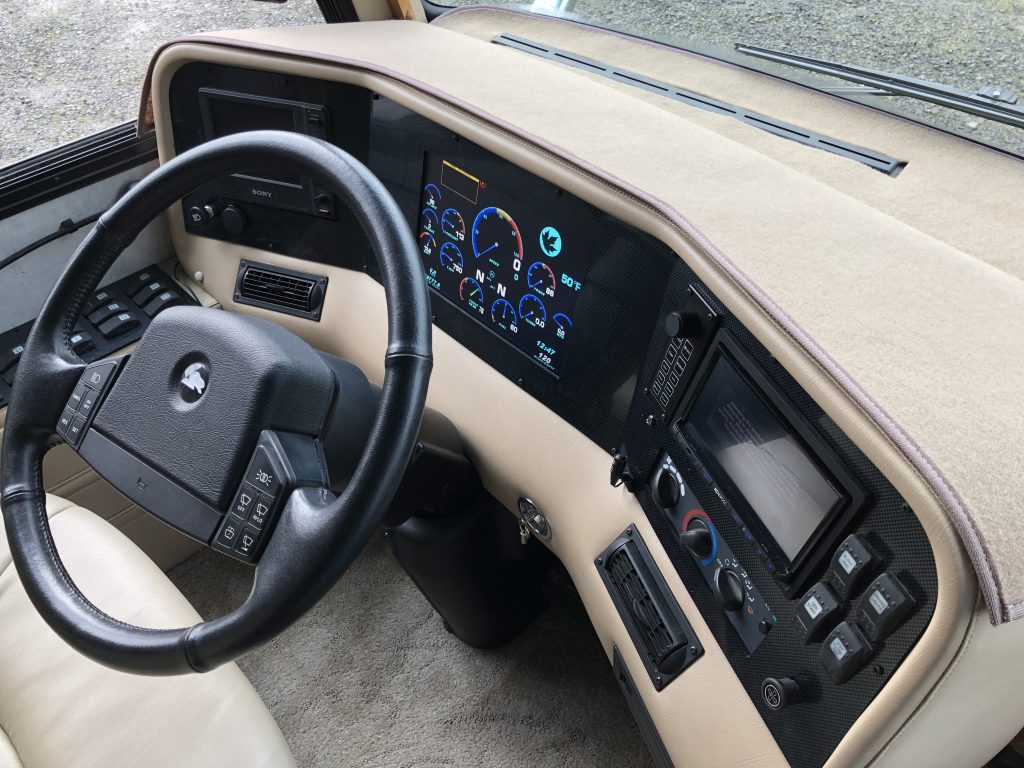

The classic size that fits in most coaches. Popular with Prevost buses!
- 10.4″ diagonal (8.3″W x 6.2″H)
- 1024 x 768 resolution (XGA)
- 1A @ 12V
- 4 composite video inputs
- Kit includes TM120 data collector, air pressure sensors, and 10 button keypad

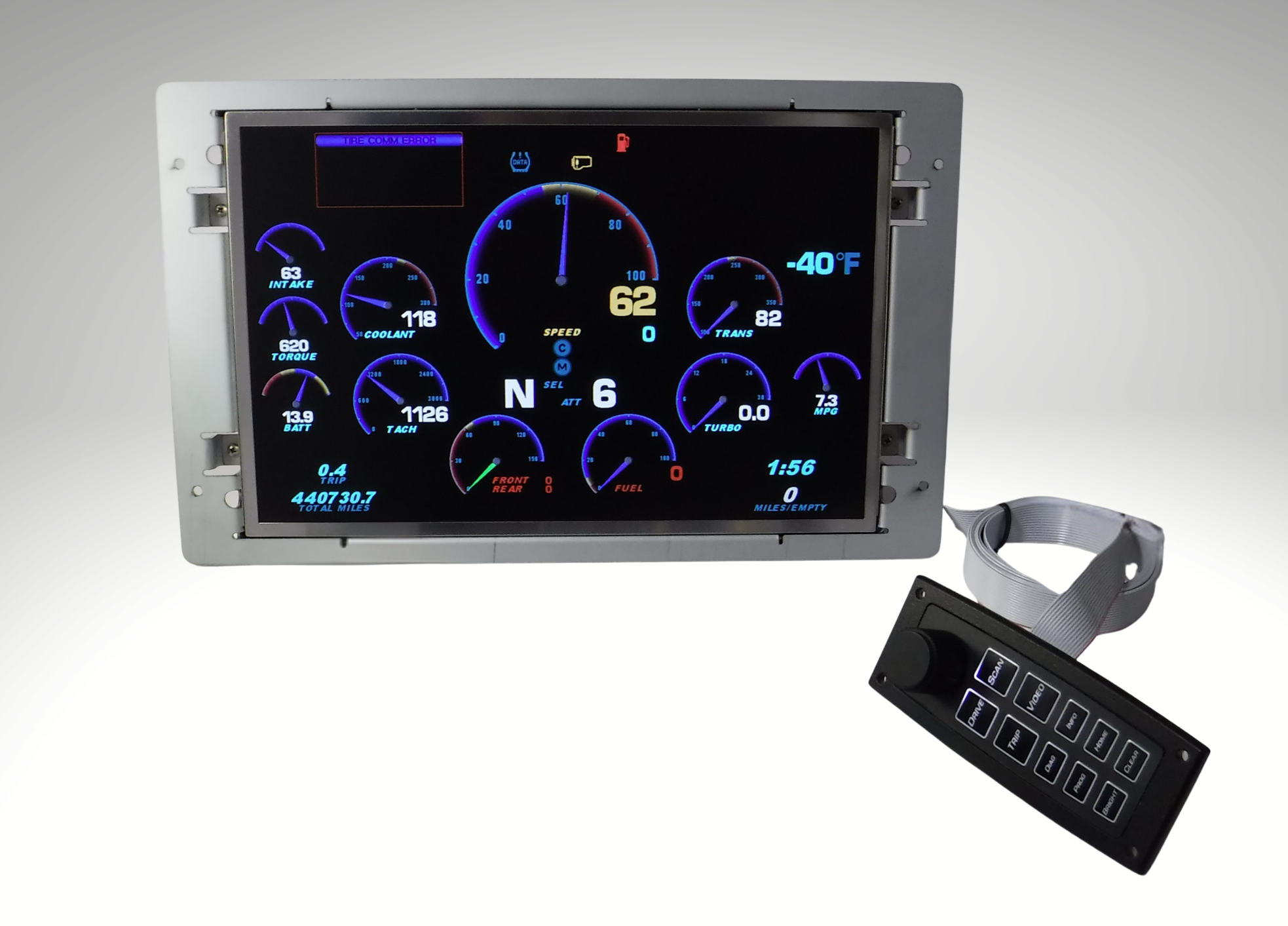

VMS765
12″ Digital Dash
The VMS765 is the wider cousin to the VMS755. All the same features on a larger screen!
- 12.1″ diagonal (10.3″W x 6.4″H)
- 1280 x 800 resolution (WXGA)
- 2A @ 12V
- 4 composite video inputs
- Kit includes TM120 data collector, air pressure sensors, and 10 button keypad
Standard VMS Features
Digital Engine Gauges
Accelerator Position
Battery Volts
Cruise Control Set Speed
Coolant Temperature
Engine Load
Fuel Level
Fuel Rate
Instantaneous MPG
Intake Manifold Temperature
Speed
Tachometer
Turbo Boost Pressure
Dependent on Engine Model
Ambient Temperature
DEF Level Percent
DEF Tank Temperature
DPF Inlet Temperature
DPF Outlet Temperature
Exhaust Temperature
Fuel Injection Pressure
Fuel Temperature
Oil Pressure
Oil Temperature
Performance Analysis Gauges
Horsepower
Recent MPG
Rolling MPG
Torque
Torque Potential
Transmission Gauges
Gear Selected
Gear Attained
Economy/Performance Mode
Shift Inhibit/Do Not Shift Condition
Torque Converter Status
Transmission Temperature
Transmission Shaft Speed

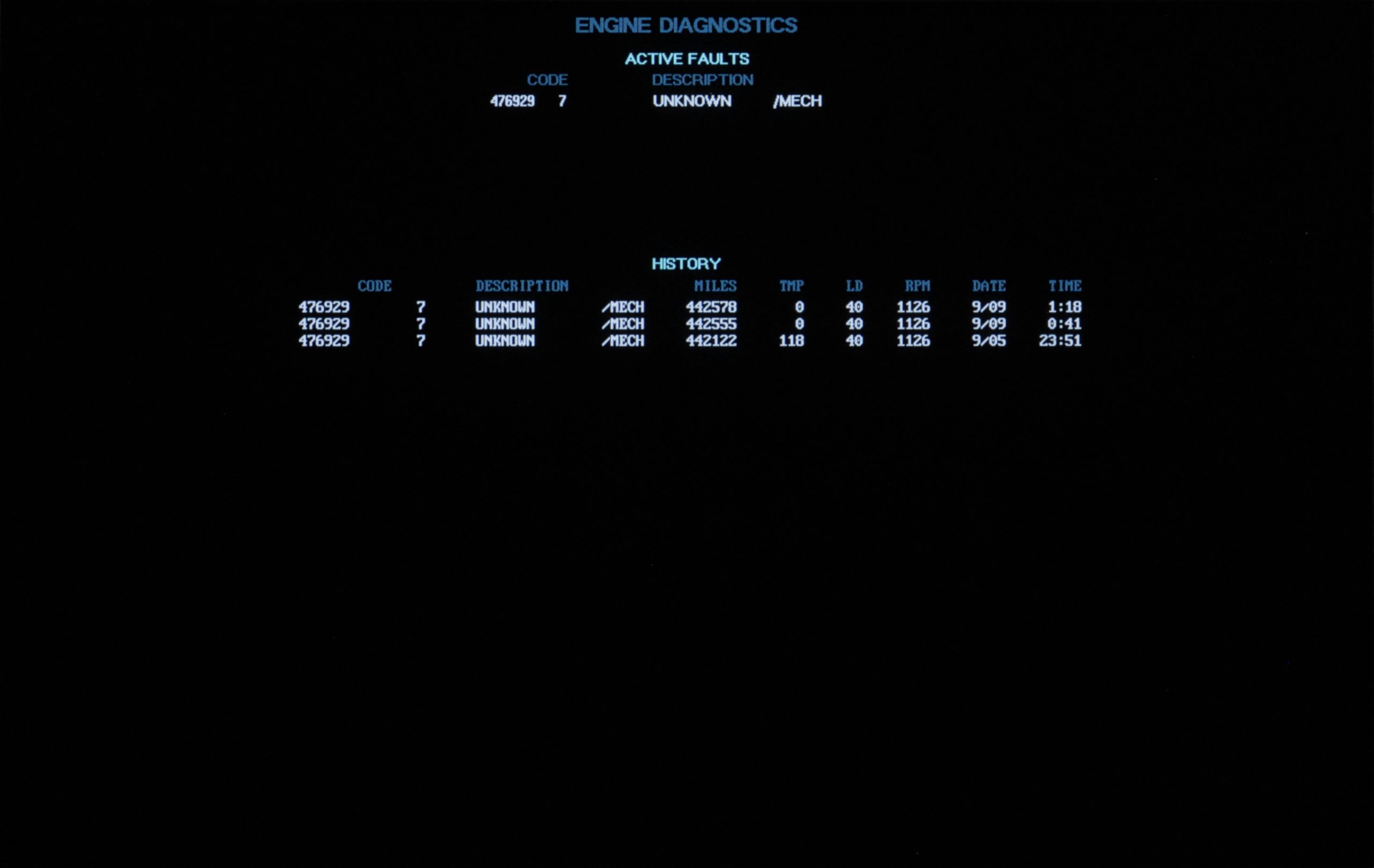

Diagnostics

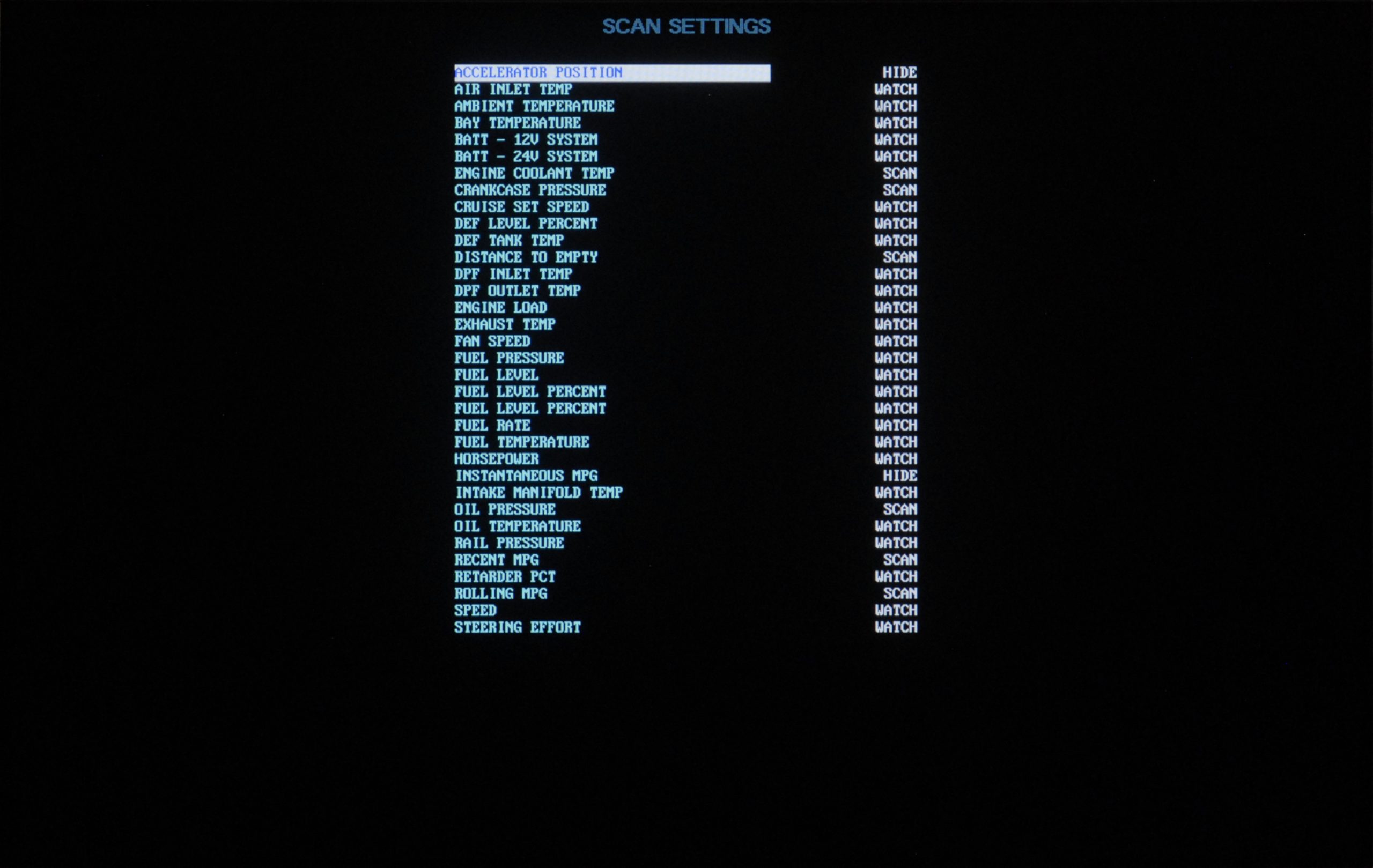

Professional Electronic Diagnostic “Scan”
Automatic Diagnostic Recording
4096 Event Memory Capacity
Plain-Language Code Translation
Other Gauges and Indicators
Air Brake Pressures
Blinkers
Check Engine/Stop Engine
Cruise Control
Engine Odometer/Hourmeter/Fuelmeter
Hi Beam
Low Fuel
Park Brake

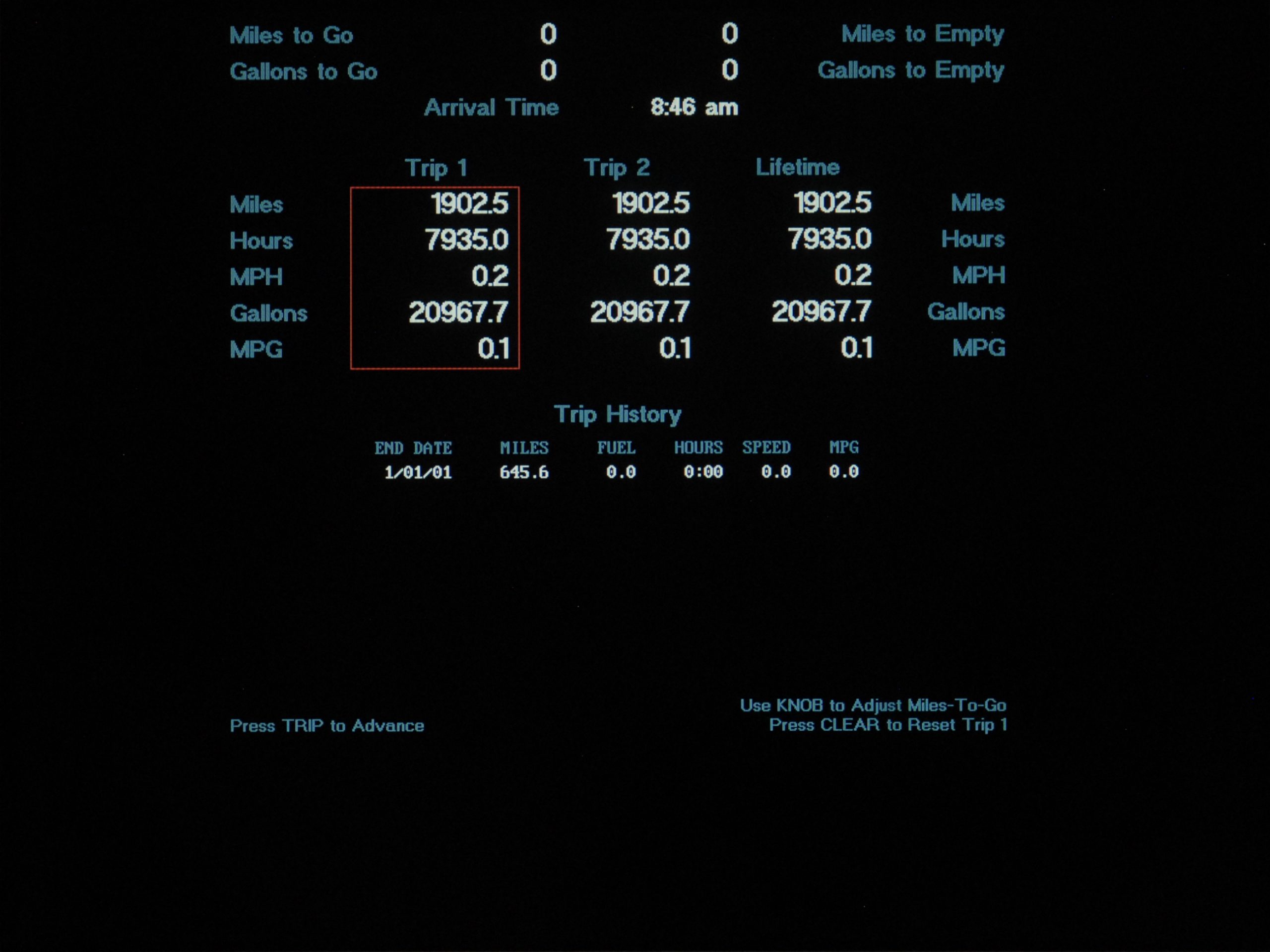

Trip Features
Trip MPG
Trip Miles
Trip Time Elapsed
Trip Fuel Consumed
Trip Average Speed
Trip Miles Remaining
Estimated Time of Arrival
Estimated Fuel Required
Trip History with 4000 Trip Capacity
Other Features
4 standard video inputs
Automatic Blinker/Backup Video display
Clock
Tire Pressure Monitoring Support
(Pressure Pro Tire System sold separately)
Selectable Metric Readings
Product Documentation
VMS755/765
Owner's Manual
More info on operation and capabilities are found in the owner’s manual.
VMS755/765
Questionnaire
Thinking about purchasing a dash? Fill out this questionnaire and send to Trillium for a personalized quote!
