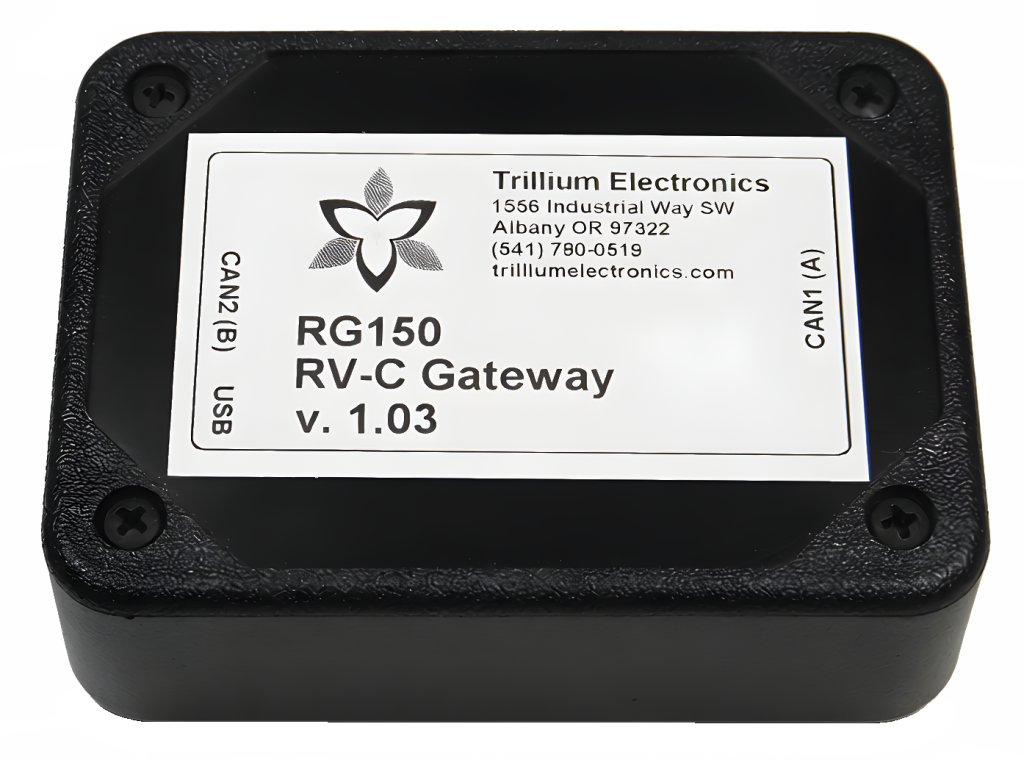

RG-150
RV-C / J1939 Gateway
- Compatible with RV-C and J1939

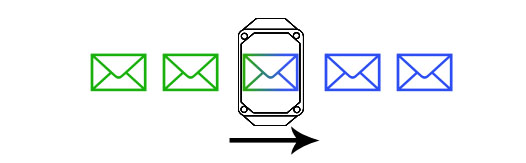

- Transmission buffer/repeater
- Configurable transmission speed (250k or 500k)
- Source address masking / spoofing
- Inclusive and Exclusive filtering
- "Easy mode" passes all traffic while isolating network segments
- Selectable terminating resistors

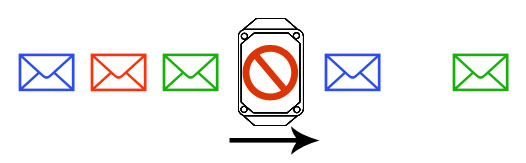

Message Filtering
Up to 64 Configurable Filters
The Trillium Electronics RG150 allows multiple independent blocking or bridging filters. Up to 64 filters can be applied simultaneously, giving you greater control over your network.
- Filter on DGN/PGN
- Filter on Source Address
- Filter on Manufacturer
- Apply multiple criteria to allow/block

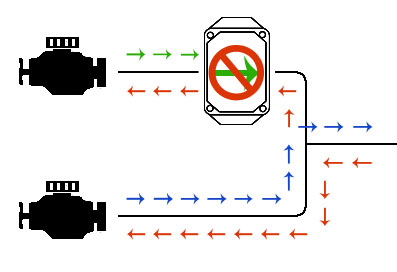

The RG150 isn’t just for RVs. Marine applications, for instance, benefit from the RG150’s ability to eliminate conflicts in a dual motor setup.
Conflict Resolution
The RG150 helps resolve network conflicts by removing non-compliant or problematic messages. It can also block or spoof source addresses to prevent address claiming conflicts or duplicate data.
When multiple devices are reporting the same data point, the RG150 can block that data from all but the preferred device.
A More Robust Network
- Eliminate Extraneous Terminating Resistors
- Buffer and Boost Long Runs, Eliminating Length Restrictions
- Configurable Transmission Speed
- Pass-Through Power up to 4 Amps at 12 Volts
- No more lost messages or sluggish response times

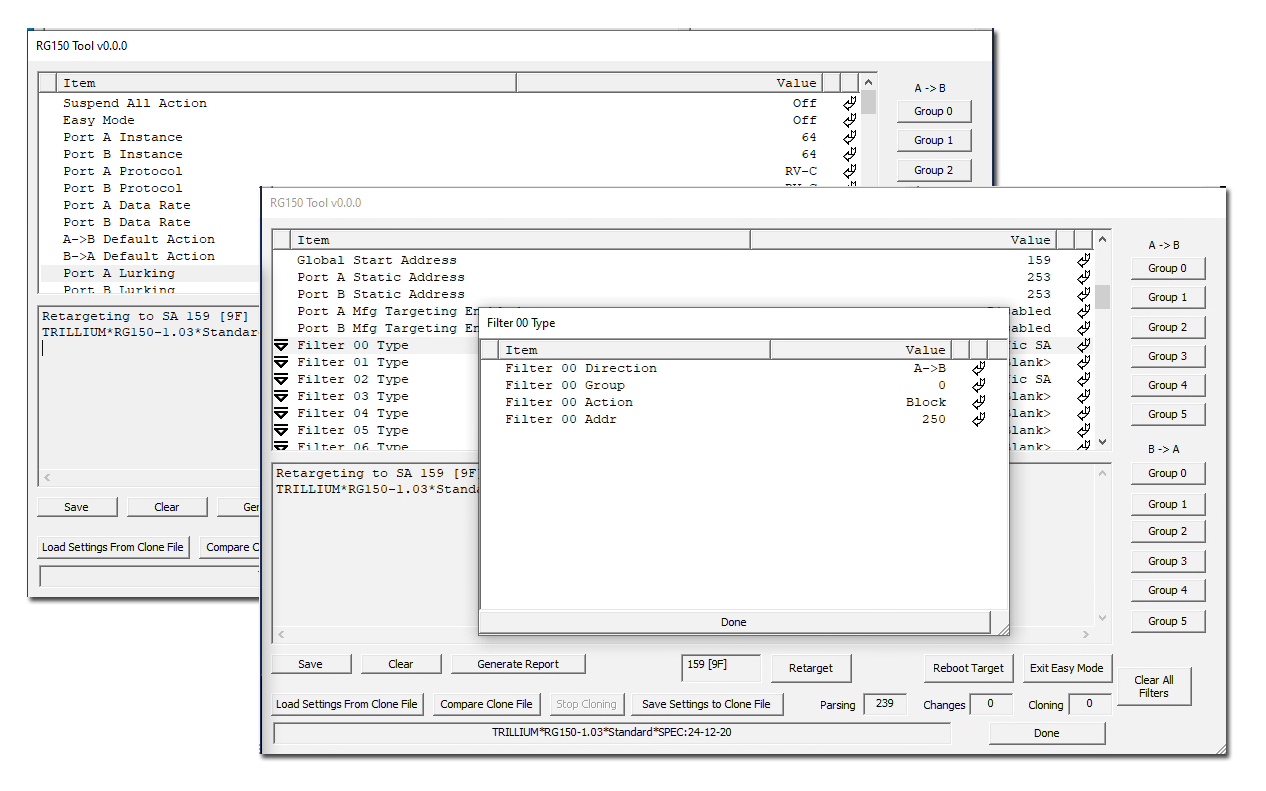

Impressive Flexibility
The RG150 tool provides complete control over filter rules through Omniscope. Filters are organized into 12 groups, 6 per port.
